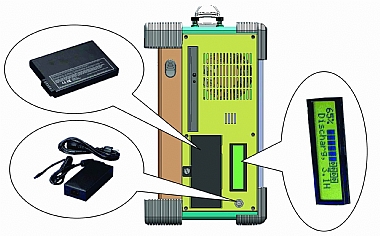

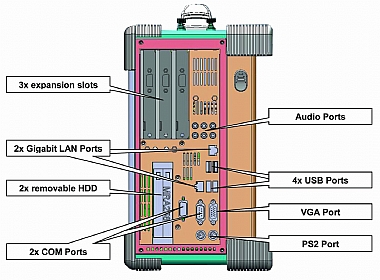

Up View Right View Left View Battery Option Battery Type I/O

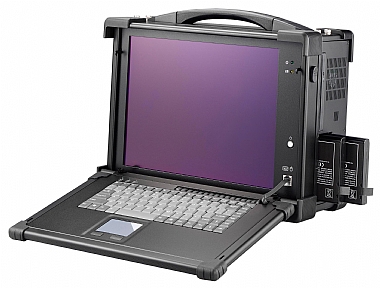

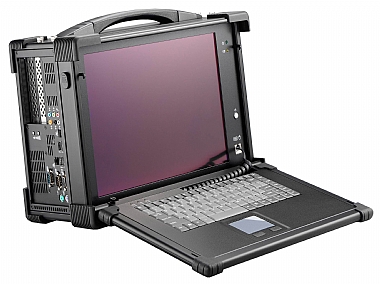

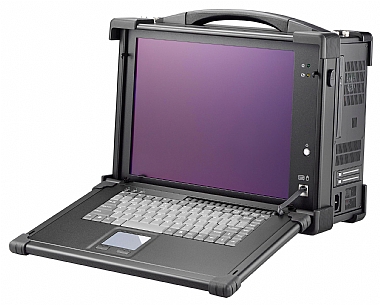

A945 Features ● All-in-one design rugged portable computer ● Rugged Aluminum Construction with rubber corners ● Compact Size Lightweight Design ● Built-in 15" TFT LCD display, 1024x 768 with tempered glass ● 250W PSU or 190W Li-ion battery packs ● Mini-ITXMB, Intel Core 2 Duo T7500 Processors ● Keyboard multi-language with touchpad ● 3x PCI-E (8x) full-length expansion slots    Option: 3x PCI-X or 2x PCI, 1x PCI-E (x16) ● Built-in 320GB HDD, Support 2x 2.5" removable HDD (option) ● Dual Gigabit Ethernet Support, 2x COM port ● Carrying case to manage portable PC with ease Description      Model No A945 A945-B CPU Intel Core 2 Duo T7500 (2.2GHz) Processors Chipset Intel Gm45 Chipset + ICH9M Slot 3x PCI-E (8x) full-size slots 3x PCI-X or 2x PCI, 1x PCI-E (x16) slots Display 15" TFT LCD Monitor, 1024x 768, 250 nits, 16.2M Anti-reflection tempered strengthen glass Memory 2GB RAM(Up to 4GB Max) HDD 1x 320GB 2.5", 7200 rpm SATA HDD 2x 2.5" Hot-Swappable SATA CDROM 1x Slim DVD-RW Interface x USB 2.0 Ports, 1x VGA Port, 2x Gigabit LAN, 2x COM port, PS2 KB/MS, Audio Keyboard/Mouse Notebook type keyboard with touchpad Power 250W, 100~240 VAC, Auto switch 2x 95W Li-ION battery Packs (Hot-Swappable), up to 4 hours battery life Housing Rugged Aluminum Construction with rubber corners Dimensions 412x 305x 184 mm (Wx Hx D) Weight 9 Kg Carrying case Padded carrying case with wheels      Environmental Factors Operating Temp. 0°C~50°C (32°F~122°F) Storage Temp. -20°C~60°C (-4°F~140°F) Relative Humidity 10%~90% (non-condensing) Shock          Operating Operating 10g, 11ms, half-Sine Non-Operating: 30g, 11ms, half-Sine Vibration Operating:10-500Hz (0.4 Grms) Non-Operating:10-500Hz (1.12 Grms) Approval CE, FCC, RoHS
