Overview

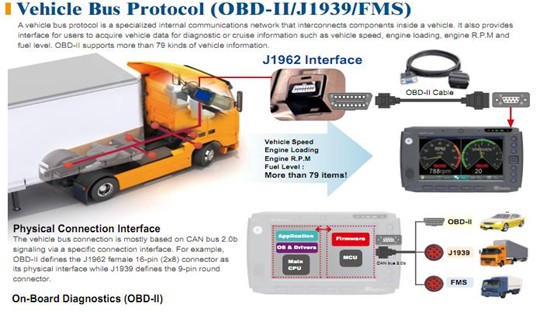

A vehicle bus protocol is a specialized internal communications network that interconnects components inside a vehicle. It also provides interface for users to acquire vehicle data for diagnostic or travel information such as vehicle speed, engine loading, engine R.P.M and fuel level. For example, OBD-II supports more than 79 kinds of vehicle information.
The vehicle bus protocol deals with special request for data transmission reliability and quality on vehicle bus. The MCU inside AKarPC acts as a converter among these protocols. We currently supports three major vehicle bus protocols: OBD-II, J1939 and FMS. The OBD-II is mostly for small car diagnostics while the SAE J1939 is implemented for off-road vehicles with diesel engines and the FMS is for commercial trucks or buses.
Physical Connection Interface
The vehicle bus connection is mostly based on CAN bus 2.0b signaling via a specific connection interface. For example, OBD-II defines the J1962 female 16-pin (2x8) connector as its physical interface while J1939 defines the 9-pin round connector.
Bluetooth® V2.0 +EDR Class 1
Efficient mobile connectivity for GPS map download and high quality video/audio stream.
802.11b/g Wi-Fi®
Best for near field data synchronization or ad-hoc communication when vehicle park in parking space or dock.
WWAN 2.5G/3.5G/3.75G
Supported Bands：
• WCDMA/CDMA2000/TD-SCDMA
• HSUPA/HSPA/UMTS-800/850/900/1900/2100 MHz
• Quad-band EDGE/GPRS/GSM-850/900/1800/1900 MHz
• Dual-band EV-DO/CDMA
GPS
• 32-channel engine
• TTFF (Time to First Fix) < 1 sec for hot and aided starts
• -160dBm Super Sense sensitivity
• GPS service by accessing to assistance ephemeris data server via internet or mobile connectivity
• Travel navigation, real time locating and path tracking
Digital TV
• Alternative DVB-T / CMMB Entertainment
• Intelligent TV channel scan and memory for quick program access.
AKarPC SDK
Allows third-party to develop software for AKarPC or customize for Fleet Management.
AKarPC Manager
Provides driver the travel and job information from vehicle bus and GPS input.
Web-based FMS
Allow users to locate or track fleet, plan routes, manage job data and generate reports.
Display
|
LCD
|
8" TFT-LCD (Sunlight readable)
|
|
Brightnes(cd/m2)
|
600 cd/m2 High Brightness
|
|
Max Resolution
|
800 x 480 pixels WVGA
|
|
Viewing Angle
|
60/60/50/50 Deg.
|
|
Touch Screen
|
5-Wire Resistive Type Touch
|
System
|
CPU
|
Intel® Atom®™ Z510 1.1 GHz
|
|
Chipset
|
Intel® US15WP
|
|
Operating System
|
Microsoft® Windows® XP Embedded
|
|
Memory
|
1 GB DDR2 533 MHz On-board
|
|
Storage
|
4 GB CompactFlash®
SD Card Slot
|
Communication
|
Wireless LAN
|
Wi-Fi® 802.11 b/g
|
|
Bluetooth
|
Bluetooth® V2.0+ EDR (Class 1)
|
|
Modem
|
WCDMA/HSUPA
|
|
GPS
|
GPS w/ Internal Antenna
|
Multimedia
|
Audio
|
1 x Line-in
1 x Line-out
1 x 3 W Speaker
|
|
Digital TV
|
DVB-T , CMMB Module (Optional)
|
|
Camera
|
0.3 Megapixel CMOS Camera
|
LED Indicators & Buttons
|
Indicators
|
Wi-Fi®/Bluetooth®/HDD/3.75G/DVB-T/Power Status LED
|
|
Hot Key & Buttons
|
F1~F6 Function Key, Direction key, Power Button
|
I/O Interface
|
USB
|
2 x USB 2.0
|
|
Serial
|
1x DB-9 OBD-II
1x DB-9 RS-232/422/485 (Software selectable w/ 5V DC)
|
|
LAN
|
1 x 10/100/1000 Mbps GbE RJ-45
|
Power
|
Cigarette Lighter Power
|
Cigarette Lighter Power CableDC 9~30V
|
|
ACC Power
|
Manual power mode and ignition detection supported ACC power on/off mode with software configurable delay time
|
|
Power Adapter
|
12V@3A@36W (Optional)
|
Environment
|
Operating Temperature
|
-20°C to +60°C
|
|
Storage Temperature
|
-30°C to +70°C
|
|
Humidity
|
5%~95% non-condensing
|
|
Drop Survival
|
1 M
|
|
Environmental Protection
|
IP54 compliant front panel (Water, dust and splash resistant)
|
|
Certification
|
CE/FCC/CCC/E-MARK
|
Physical Characteristics
|
Dimensions (LxWxH) (mm)
|
261 x 162 x 44
|
|
Net Weight
|
1730 g
|
|
