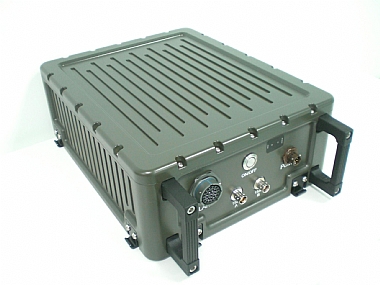

Front View

Left Side View
CR-4000
    Features :
      * Build-in 1553 Bus A & B
    * Build-in RS232 / RS422
    * Build-in CF card slot
      * All housing safety angle design
    * Meet IP65 water proof level for the all housing
    * Pin assignment can be arranged for customer
    * Qualified to MIL-STD-810F & MIL-STD-461E

Description
System Specification
Model : CR-4000
Form Factor
EPIC
CPU Supported
45 nm 1.6 GHz Intel® Atom™ N270
Front Side Bus (FSB)
533 MHz
Northbridge Chipset
Intel® 945GSE
Integrated Graphics
Intel® 945GSE, Intel® Generation 3.5 integrated GFX Core
(133Mhz)
Memory
One dual-channel 2.0 GB (max.) 533 MHz DDR2 SDRAM
SO-DIMMs (system max. 2.0 GB) supported
Southbridge Chipset
Intel® ICH7M
Audio
Realtek ALC655 AC'97 codec
BIOS
AMI BIOS
Digital I/O
8-bit, 4-bit input/4-bit output
Ethernet Controllers
Two Realtek RTL8111CP GbE controllers
Super I/O Controller
ITE IT8718
Watchdog Timer
Software programmable supports 1~255 sec. system reset
Infrared
One infrared connector through the ITE IT8718
Display
One VGA ( only pull VGA signals to military connector)
One LVDS (internal)
One TTL (internal)
Ethernet
2 x Gigabit LAN
Keyboard/Mouse
One PS/2 port
LPT
One internal parallel port connector
Serial Ports
RS-232 port (one external, two internal connectors)
One RS-232/422/485 (internal)
USB 2.0/1.1 ports
Two external USB ports
Four via internal pin headers
Storage
CompactFlash® One CompactFlash® Type II socket
Serial ATA independent serial ATA (SATA) channels with 1.5 Gb/s data transfer rates

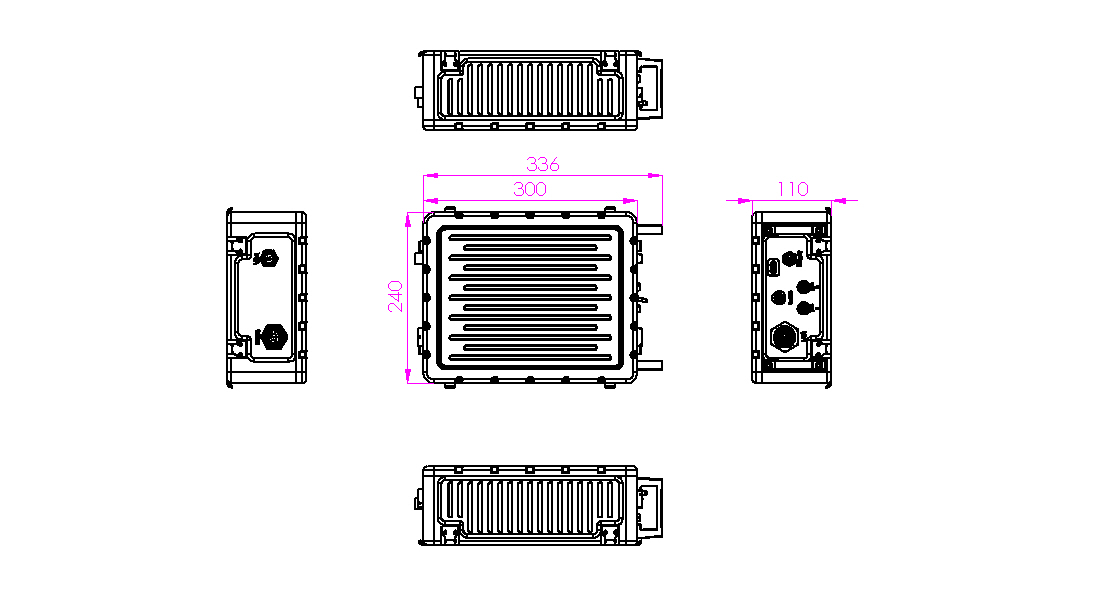

System Dimension
300mm * 240mm * 110mm
System weight
6.5kg
Housing color
Army green
Power input range
Input power range : DC18V to DC32V. ( standard)
DC18V to DC48V ( optional)

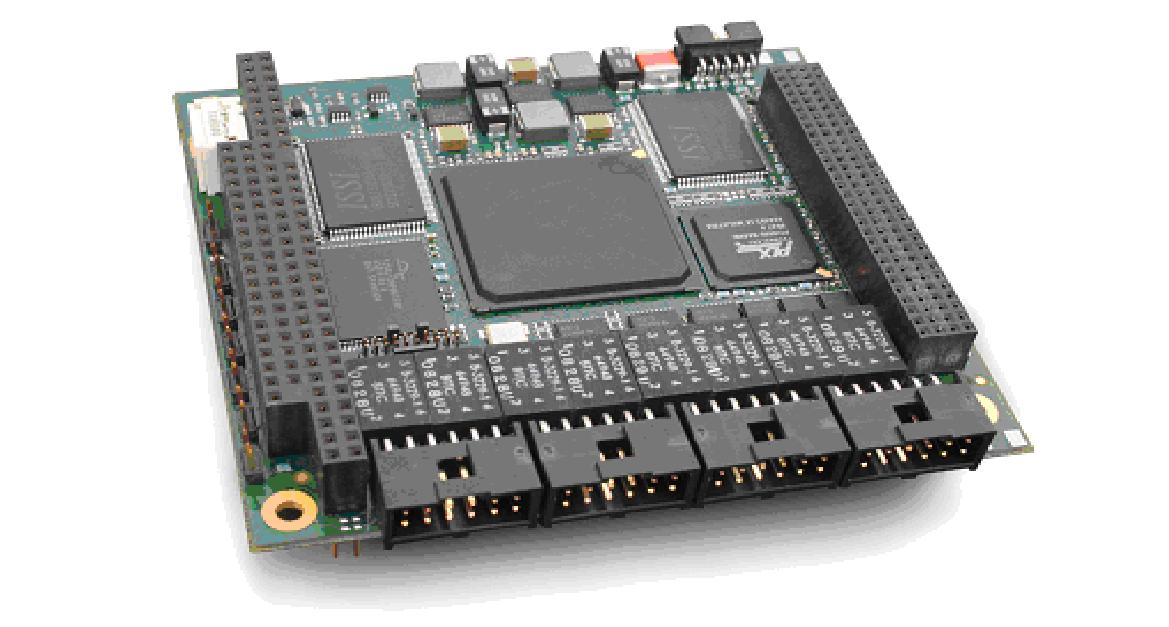

        Models of 1553 card : BU-67104/5C, BU-67108/9C
        Key Features
     • Up to 4 Dual Redundant MIL-STD-1553 Channels
 --BC/Monitor or Multi-RT/Monitor per 1553 Channel
 --Supports MIL-STD-1553 A/B & MIL-STD-1760
 --MIL-STD-1760 RT Auto Boot
 --External RT Address Inputs
 --BC Disable for RT Only Applications
 --Tx Inhibit for MT Only Applications
 --Transformer and/or Direct Coupled
     • Up to 16 Receive and 8 Transmit 429 Channels
     • Up to 9 Digital Discrete I/O
     • Up to 8 (+35V) Avionics Discrete I/O
     • IRIG-B Time Code Input/Output
     • 48-bit/100ns Time Stamp
     • +5V Only Operation
     • Low Power Dissipation
     • High-Level C SDK and Drivers for Linux®, VxWorks®, and Windows® 2000/XP/Vista/7
     • Graphical Avionics Bus Analysis & Simulation Software Available
    • ACETREME- Next generation 1553 Core


 Benefits
• Rugged Design for Harsh Environments
• Field Proven Reliable Techology Based on over 62 Million Hours of In-Flight Performance
• Unique I/O Mix & High Channel Count Reduces:--Space, Power, Weight, Cost
• Shorten Development Cycle and Reduce Risk with Automated Code Generation
• IRIG-106 Chapter 10 On Board Formatting
• User SelectableBC Disable/Tx Inhibit per 1553 channel
  • On-Board DMA Engine for Low CPU/PCI Utilization


Optional Software:
      Data Bus Analyzer and Monitor Software / Avionics Data Bus Test and
      Analysis SoftwareLabVIEW® Support Package / Commercial Avionics Utilities
