LCD Size
|
10.4"
|
|
Max Resolution
|
800 * 600
|
|
Brightness (cd/㎡)
|
400
|
|
Contrast Ratio
|
500:1
|
|
LCD Color
|
262K
|
|
Pixel Pitch (mm)
|
0.264 (H) x 0.264 (V)
|
|
Viewing Angle (H-V)
|
160° / 140°
|
|
Backlight MTBF
|
50000 hrs
|
|
SBC Model
|
ABORN-GSE-N270-R10
|
|
CPU
|
Intel® Atom™ process N270 1.6GHz CPU
|
|
Chipset
|
Intel 945GSE / ICH7M
|
|
RAM
|
Supports one 400MHz or 533MHz DDRII SO-DIM (2GB Max.)
Standard shipping 1GB memory.
|
|
I/O Ports ( military connector)
|
2 x RS-232 COM Port ( Full 9 pin x 1 /. RXD,TXD,GND x 1 )
1 x RS-232/422/485 COM port
1 x RJ-45 for Giga LAN
1 x USB 2.0
|
|
SSD
|
8G CF Type II
|
|
Watchdog Timer
|
Software programmable supports 1~255 sec. System reset
|
|
Foldable Keyboard specs.
|
- Plug & Play (no software or drivers required)
- Built-in Smart Pad Touchpad with Left & Right mouse buttons:
-use 1 finger to activate Left click
-use 2 fingers to activate Scroll
-use 3 fingers to activate Right click
- 77 keys with Embedded Numeric Keypad
- Alphanumeric Key Sizes: 0.60" x 0.44"
- Punctuation Key Sizes: 0.40" x 0.44"
- F1-F12 Key Sizes: 0.40" x 0.28"
- Touchpad Dimensions: 2.25" x 1.375"
- Color: Black
- Compatible: Windows 98, ME, 2000, XP, Vista
5 Million Key Switch Cycles
|
|
Construction Material
|
All housing Aluminum alloy 6061-T6
|
|

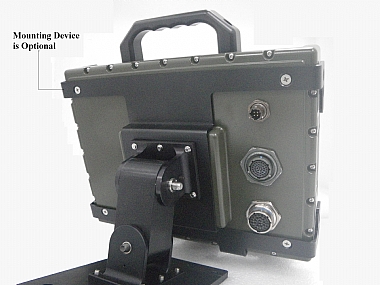

Mounting device
|
Optional
|
|
LED Function
|
1 x for Power ON/OFF and 1 x for HDD
|
|
Front Panel Color
|
Army Green
|
|
Dimension (WxHxD) (mm)
|
See drawing below
|
|
Operation Temperature
|
-30°C~60°C
|
|
Storage Temperature (℃)
|
-40°C~65°C
|
|
Net Weight
|
4.85 Kg
|
|
IP Level(front panel)
|
IP64
|
|
Touch Screen
|
Resistive Type 5-Wire (touch controller IC is on board)
|
|
Power Adapter
|
Input: 90VAC~264VAC, 50/60Hz
Output: 21VDC
|
|
Power Input
|
18~32VDC
|
|
Power Consumption
|
28W
|
