LCD Size
|
7"
|
|
Max Resolution
|
800 x 480
|
|
Brightness (cd/㎡)
|
450 nits
|
|
Contrast Ratio
|
400:1
|
|
LCD Color
|
262K
|
|
Pixel Pitch (mm)
|
0.0635(H) x 0.1905(V)
|
|
Viewing Angle (H-V)
|
140º/100º
|
|
Backlight MTBF
|
50000 hrs
|
|
SBC Model
|
ABORN-945GSE-N270-R10
|
|
CPU
|
Intel® Atom™ processor N270 1.6GHz CPU
|
|
Chipset
|
Intel® 945GSE + ICH7M
|
|
RAM
|
Supports one 400MHz or 533MHz DDRII SO-DIMM (2GB Max.)
|
|

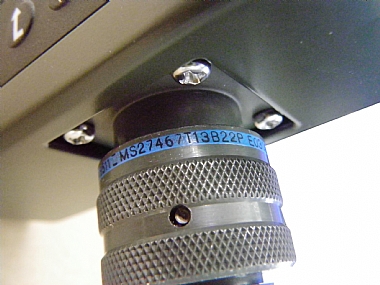

I/O Ports ( military connector )
|
1 x RS232 COM Port or 1 x RS422 COM port
1 x RJ-45 for Giga LAN
1 x USB 2.0
1 x VGA
|
|
SSD
|
8G CF Type II
|
|
Watchdog Timer
|
Software Programmable supports 1~255 sec. System Reset
|
|
Construction material
|
All housing Aluminum alloy 6061-T6
|
|
GPS
|
Optional
|
|
Mounting device
|
Optional
|
|
LED Function
|
1 x LED for Power ON/OFF and 1 LED x for HDD
|
|
Housing Color
|
Green
|
|

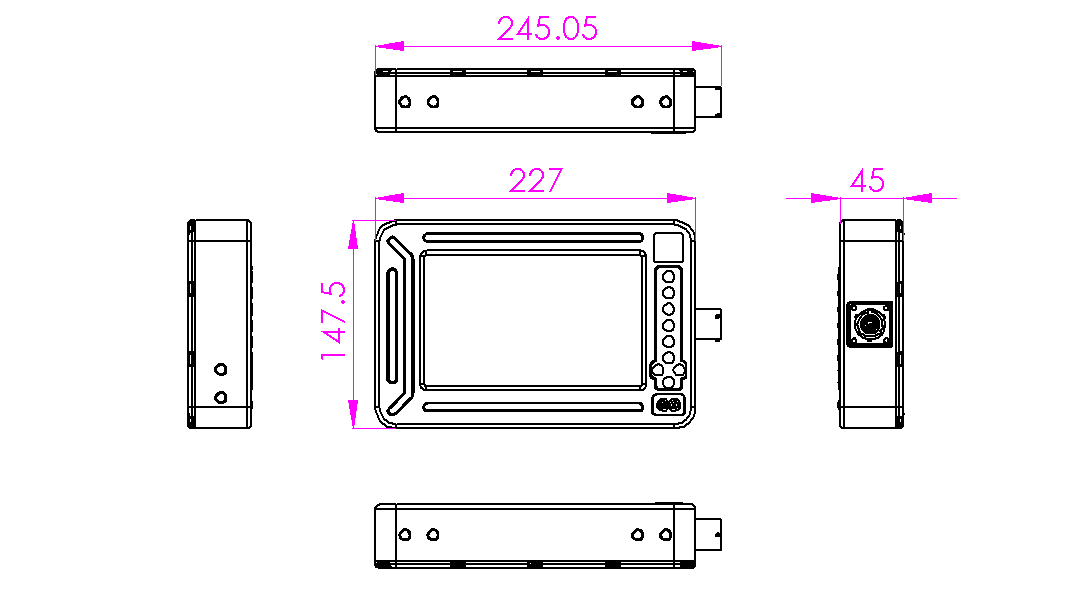

Dimension (WxHxD) (mm)
|
227 x 147.5 x 45
|
|
Operation Temperature
|
-35°C ~65°C
|
|
Storage Temperature (℃)
|
-40°C ~ 75°C
|
|

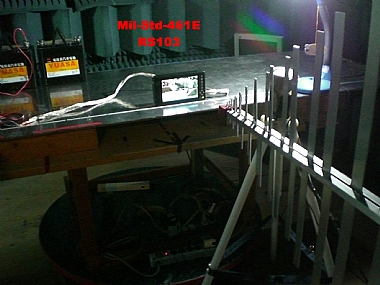

EMI/EMC
|
Mil-Std-461E
|
|
Net Weight
|
2.2 Kg
|
|
IP Level(front panel)
|
Front Frame IP64
|
|
Touch Screen
|
Resistive Type 4-Wire (Touch controller IC is on board)
|
|
Power Adapter with mating mil-connector
|
Input: 90VAC~264VAC, 50/60Hz
Output: 21VDC
|
|
Power Input range
|
DC18V~DC32V
|
|
Power Consumption
|
23W
|
