Model	MOSH-17-KBMP
LCD panel	17” SXGA TFT LCD Panel (LED B/L)
Screen Diagonal	432 mm ( 17”）
Active Area	337.920 mm (H） x 270.338 mm (V）
Pixel Pitch	0.264 mm (H） x 0.264 mm (V）
Pixel Arrangement	R.G.B. Vertical Stripe
Typical Power Consumption	40W
Input Interface	Analog VGA
Resolution (H/V)	1280 x 1024
Typical White Luminance	500 Typ [cd/m2]
Contrast Ratio	800：1 Typ.
Support Color	16.7M colors (RGB 6-bits + FRC data)
Viewing Angle (CR=10) Horizontal	(Right) 85 (Left) 85
Viewing Angle (CR=10) Vertical	(Up) 80 (Down) 80
Lamp Life Time	40000 hours
Material of housing	Aluminum Alloy 6061-T6
Input Voltage	DC18~DC36V
Touchscreen function	Build in resistive type ( RS232)

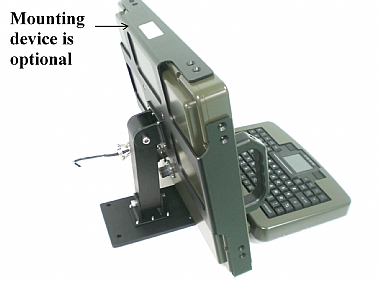

Mounting device	mounting holes
Dimension (W x H x D)	410 x 363 x 99 ( mm )
Operation Temperature	-40 ~ +65C
IP Level	IP65 for front panel
Certification	MIL-STD-810F & MIL-STD-461E
Weight	12.5 Kg
Folding keyboard & touchpad specs.	·      86 Keys in a compact size, ·      USB Connection ·      Built-in Touchpad ·      Splash proof  ·      Dimmable Backlighting w/ 5 brightness levels ·      Enhanced "Touch-typing" Full-travel Keys ·      Compatible with Windows Vista, XP, 2K, Me, 98SE ·      Color Black
