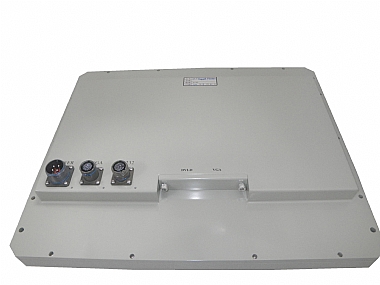

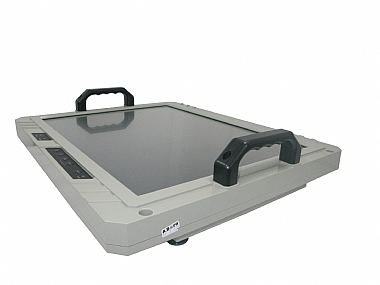

Front View 20.1" Rugged Monitor Back Side View

MOSH-2000 Feature : 1.      Design in Safety Angle and Handlers. 2.      WideTemperatureRange 3.      All housing is IP65 waterproof. 4.      Optical bonding technology . 5.      Build in Touchsreen function 6.      Compliant with 19” standard rackmount mounting holes. 7.      Design Follow Mil-Std-1472F & Mil-Std-464A & Mil-HDBK-338 Description Specification Model MOSH-2000 LCD Size 20.1” Input Interface Analog VGA \ DVI-D Resolution (H/V) 1400 x 1050 Luminance(cd/m2) 300 Contrast Ratio 500 : 1 Display Color 16.2M Pixel pitch (mm) 0.2916 (H) x 0.2916 (V) View Angle (H/V) 150 / 130 Lamp Life Time 40000 hours Material of housing Aluminum Alloy 6061-T6 Input Voltage AC 110 ~240V or DC18~36V (optional) Touchscreen function Build in resistive type ( RS232) Mounting Meet Standard 19” rackmount mounting holes. Dimension (W x H x D) 482.6 X 399 X 70 Operation Temperature -20 ~ +65C IP Level IP65 for all housing Certification Mil-Std-810F & Mil-Std-461D or 461E Weight 10.5 Kg Color Army Green or Navy Gray       VGA signals pin list SIGNAL JMS27656T13B22S Panel End MS27467T13B22P Cable End VGA – RED 2 1 1 VGA –R-GND 2 2 VGA –GREEN 4 4 VGA –G-GND 5 5 VGA –BLUE 7 7 VGA –B-GND 8 8 HS 10 10 DDC data out 11 11 VS- 13 13 DDC clock out 14 14 USB+5V N/A N/A USB - N/A N/A USB + N/A N/A USB GND N/A N/A    Touchscreen RS232 pin list. ( touch control board ) SIGNAL JD38999/20WC98SN Panel End 機器端 D38999/26WC98PN Cable End 對應端 RXD A A TXD B B GND C C         Power input pin lit. Signal MS3452W18-10P Panel End 機器端 MS3456W18-10S Cable End對應端 +DC18V~ 36V or A A DC return B B Shielding GND C C Chassis GND D D
