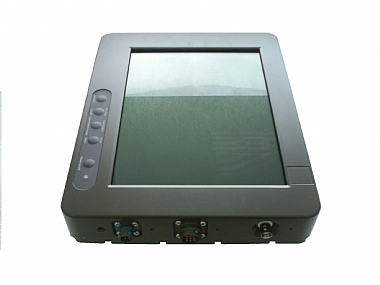

MSR-1004

Description

LCD Size
10.4"
Max Resolution
800 x 600 or 1024 x 768 ( optional)
Brightness (cd/)
350
Contrast Ratio
500:1
Display Color
16.2M
Pixel Pitch (mm)
0.0685(H) x 0.2055(V)
View Angle (H/V)
120º/100º
Backlight MTBF(Hrs)
50000
Dimension(W x H x D mm)
280mm x 225mm x 48mm
Operating Temperature
-40~+65°C
Front Panel Protection
IP 64 Compliant
Net Weight
TBD

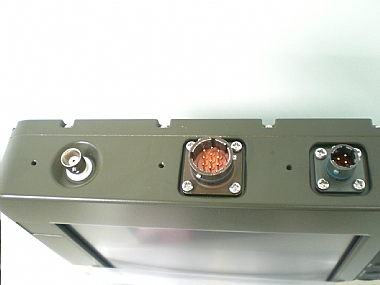

Military connector
Power : MS31148-4P
Signals : MS27656T13B22S
Input Video Signal Connector
1. Composite Video In (NTSC/PAL)
2. VGA
Touch screen function
Optional
LCD bonding technology
YES
Power input range
DC 18~ 32V
Contruction Chassis
Aluminum alloy 6061-T6
On Screen Display (OSD)
Build in OSD Functions
