Rugged 19" Monitor

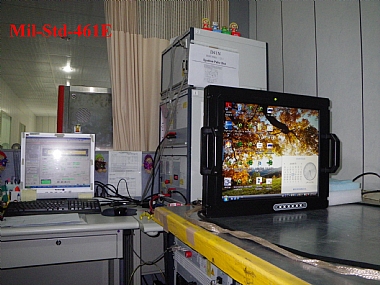

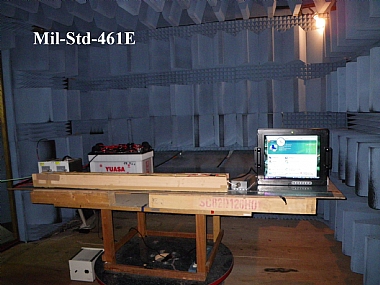

EMC Test

EMC Test

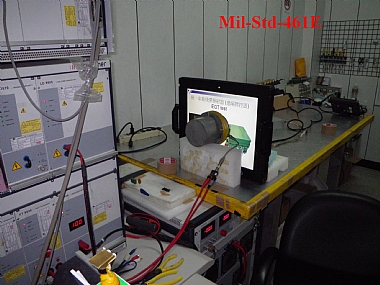

EMI Test
MOSH-19-M

FEATURES :

* 19” TFT LCD Monitor * Rugged Design for Harsh Environments
* Elegant design with durable and light plastic construction
* Multiple video inputs are suitable for more applications
* Picture-in-Picture (PIP) function
* Supports panel, wall, rack or VESA stand mounting (Optional)
* Supports RS-232 or USB touch screen panel (Optional)
* IP 64 compliant front panel

Description

Display Size
19"
Max Resolution
1280 x 1024 ( SXGA 4 : 3 )
Brightness (cd/m²)
300
Contrast Ratio
800:1
LCD Color
16.7M
Pixel Pitch (mm)
0.294(H) x 0.294(V)
Viewing Angle (H/V)
160º/160º
Backlight MTBF
( Hrs)
50000
Input Video Signal
Connector
1. BNC Connector (NTSC/PAL)
2. YPbPr
3. S-Video
4. VGA
5. DVI
Construction material
Aluminum 6061-T6
On Screen Display (OSD)
1. OSD Keypad on the Front Panel
User's Controls
OSD Buttons: Power, Left, Up, Down, Right ,Menu
OSD: Image (Brightness, Contrast ,Sharpness),
Display (Auto Adjust, Phase, Clock, Display Control)
PIP(Pip On/Off, Pip Input Select, Pip Size, Pip Position ,Pip Color Controls,
Blend)
Color (Auto Color, Color Temperature, sRGB)
System(Audio, Factory Reset , Information, Input select, Misc)
Mounting
Wall mounting (VESA 100 x 100mm)
Dimension (WxHxD) (mm)
469.94 x 382.46 x 67 ( without military connector)
Net Weight (Kg)
7.8Kg
