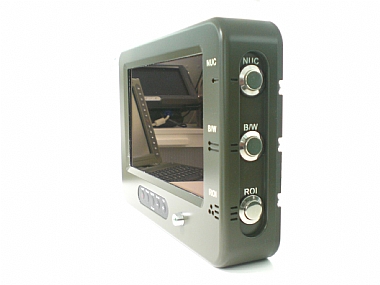

Right Side View

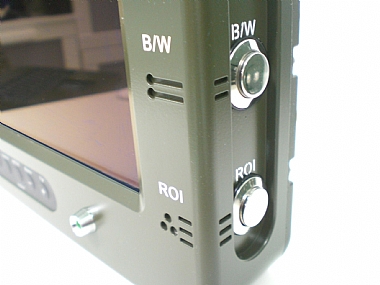

Right Side Close View

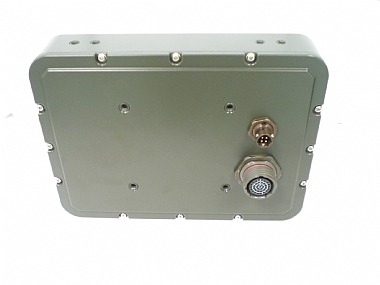

Back Side View
RM-7850-IMI
Features:
* Strengthen of the anti-reflection glass: 7H
* Optical LCD bonding design.
* Video splitter incorporated,
* Sunlight readable
* All housing safety angle design
* IP65 waterproof level for the all housing.
* Pin assignment can be rearranged for customer.
* Pass Mil-Std-810F & Mil-Std-461E
* Provide extra DC9V power to external thermal Camera

Description
Specification :
Item
Specification
Screen Size
7.0 inches (Diagonal)
Display Resolution ( Pixel )
800 (H) x 480 (V)
Active Area
152.40 (H) x 91.44 (V)
housing Dimension
208mm(H) x 155mm(V) x 45mm (T)
Display Mode
Normally white mode/ Transmissive
Pixel Arrangement
R,G,B Vertical Stripe
Pixel Size
190.5 x 190.5
Display Color
Full Colors
Power input range
DC 18V ~ 32V
Weight
1.7 Kg
Color
Green or black color
Mounting device
Optioinal



  Military Connector
:
Connector
Manufacture Part Number
No. of Pins
Spare Pins
Mating Connector
(optional)
J1 – Power
MS3112E 8-4P
4
0
JMS3116F 8-4S
J2 – Service 1
D38999/24WD35SN
37
0
D38999/26WD35PN

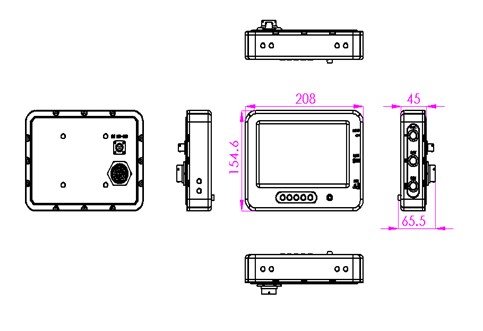

Dimensions : ( mm )
