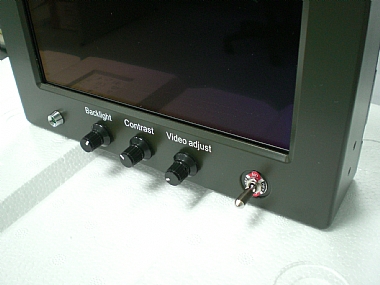

front rotated button picture

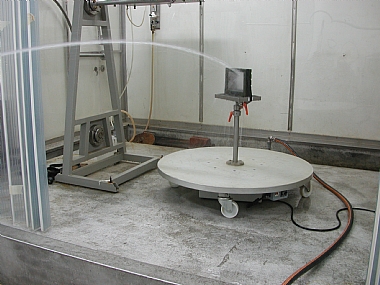

IP65 test

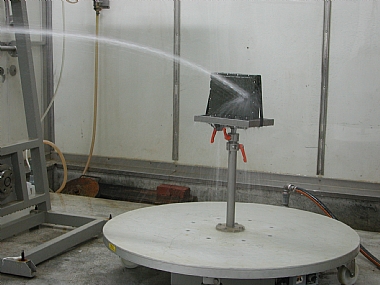

IP65 test

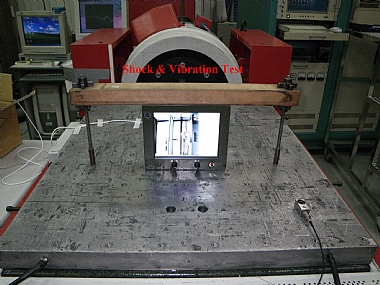

Mil-Std-810F

EMI/EMC
MOSH-08-M
Features :
* IP 65 for front panel.
* 8.4” TFT LCD Monitor
* Picture-in-Picture (PIP) function
* Multiple video inputs are suitable for more applications
* Supports panel, wall, rack or VESA stand mounting (Optional)
* Supports RS-232 or USB touch screen panel (Optional)
* Elegant design with durable and allumnium alloy 6061-T6 construction

Description
Specification :
LCD Size
8.4"
Max Resolution
800 x 600 (SVGA)
Brightness (cd/)
450
Contrast Ratio
500:1
Display Color
262K
Pixel Pitch (mm)
0.213(H) x 0.213(V)
View Angle (H/V)
120º/100º
Backlight MTBF(Hrs)
50000

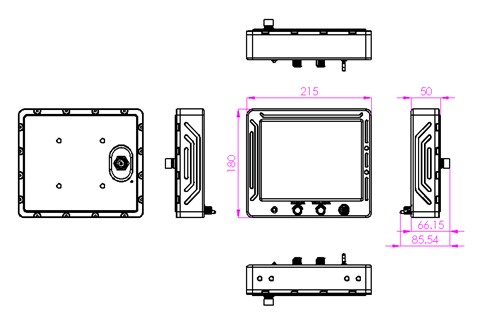

Dimension(W x H x D mm)
233.86 x 183.86 x 41.09
Operating Temperature
-20 ~ +65°C
Front Panel Protection
IP 65 Compliant
Net Weight
1.14
Power Comsumption
15W
Input Video Signal Connector
1. Composite (NTSC/PAL)
2. YPbPr
3. S-Video
4. VGA
EMI/EMC
Mil-Std-461E
Environment test
Mil-Std-810F
Construction Front Panel
ABS and PC Plastic front frame
Contruction Chassis
Aluminum Chassis
Mounting
Panel / Wall mounting (VESA 75 x 75mm)
